Description

BUS Analyzer MIL-STD-1553B Data Bus Controller

A MIL-STD-1553B Bus Analyzer is a diagnostic tool designed to monitor, analyze, and troubleshoot communication on MIL-STD-1553B data buses. It captures and records all data exchanged between terminals, allowing users to visualize, decode, and interpret messages in real time. With its ability to search and graphically display terminal activity, the analyzer helps identify faults, verify system performance, and ensure compliance with the MIL-STD-1553B standard.

It also supports features like logging message histories, analyzing subsystem operations, and generating detailed reports for system validation. This makes it an essential tool for testing, maintaining, and optimizing critical systems in aerospace, defense, and industrial applications.

MIL-STD-1553B Data Bus Controller

The MIL-STD-1553B standard is one of the most widely used communication buses in aerospace systems due to its high reliability and low noise. Originally developed for military applications, it is now extensively used in civilian systems and critical industries such as aircraft, satellites, missiles, space stations, ships, and military transport equipment.

This advanced MIL-STD-1553B Data Bus Controller combines the reliability of the standard with state-of-the-art features, ensuring precise and stable communication for demanding applications.

Key Features of BUS Analyzer MIL-STD-1553B Data Bus:

  • Redundant Bus Capability: Dual bus support (A and B) enhances system reliability and fault tolerance.
  • Flexible Connections: Supports both direct and transformer coupling to adapt to various system architectures.
  • FPGA Implementation: Designed as an IP Core on FPGA for easy customization and advanced integration.
  • Comprehensive Message Support:
    • Exchanges all message types defined in the MIL-STD-1553B standard.
    • Capable of sending all Mode Codes with accuracy.
  • Data Recording and Analysis: Logs all exchanged messages for detailed analysis and troubleshooting.
  • Graphical Terminal Monitoring: Monitors and visualizes the operational status of bus terminals and subsystems.
  • Message List Management:
    • Supports single or continuous message transmission.
    • Saves and retrieves message lists in the software memory for efficient management.

BUS Analyzer Technical Specifications:

  • Standard Compliance: Physical layer with output voltage levels adhering to the MIL-STD-1553B standard.
  • USB Interface: Connects to a computer via USB for configuration and data transfer.
  • Power Options: Operates using USB power or an external power supply for flexibility.
  • Energy Efficiency: Consumes less than one watt of power, making it suitable for energy-sensitive applications.
  • User-Friendly Software: Includes Windows-based software for bus controller configuration and information exchange.

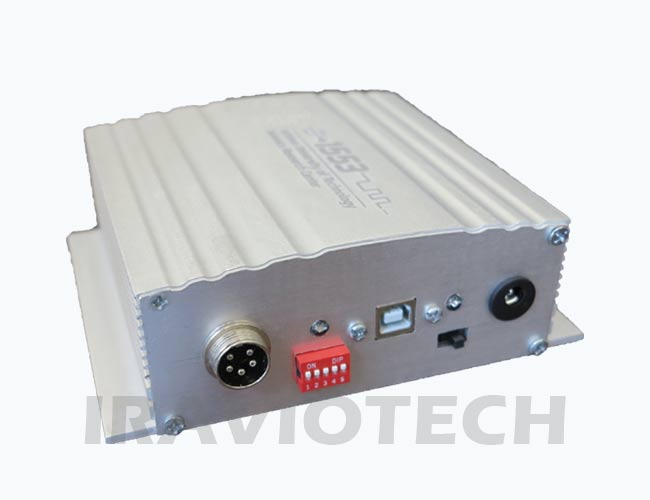

System Specification

  • USB input port (Type B) for convenience and Reliability of communication

  • 5 pin military connector for output port

  • LEDs Indicator to display system status

  • Aluminum box

  • Size: 13×15 cm

RT (Remote Terminal) MIL-STD-1553

In the MIL-STD-1553 standard, an RT (Remote Terminal) is a key component that acts as an interface between the data bus and subsystems or devices connected to the bus. RTs are responsible for receiving, processing, and transmitting messages on the bus as instructed by the Bus Controller (BC). Each RT is assigned a unique address, enabling it to communicate efficiently without interference from other devices on the same bus.

RTs can perform a variety of operations, including:

  • Data Transfer: Sending and receiving data to and from the Bus Controller or other RTs.
  • Mode Code Support: Handling specific commands from the BC, such as synchronization or status reporting.
  • Error Handling: Detecting errors like parity or response timing issues and reporting them to the BC.

Remote Terminals are designed to comply with the strict timing, electrical, and communication protocols defined in MIL-STD-1553, ensuring reliable operation in high-stakes environments like aerospace, military, and industrial systems.

Applications:

Thanks to its robust design and reliable performance, this MIL-STD-1553B Data Bus Controller is the preferred choice in critical industries such as:

  • Aerospace systems (aircraft, satellites, and space stations),
  • Defense systems (aviation vehicles, and ships),
  • Advanced communication systems requiring high reliability and low noise.

This controller combines the trusted capabilities of the MIL-STD-1553B standard with modern features, making it an ideal solution for both military and civilian applications where precision and reliability are paramount.
